D1 Digital power amp.

The D1 digital power amplifier module is a 12 volt high efficiency 15 watt per channel

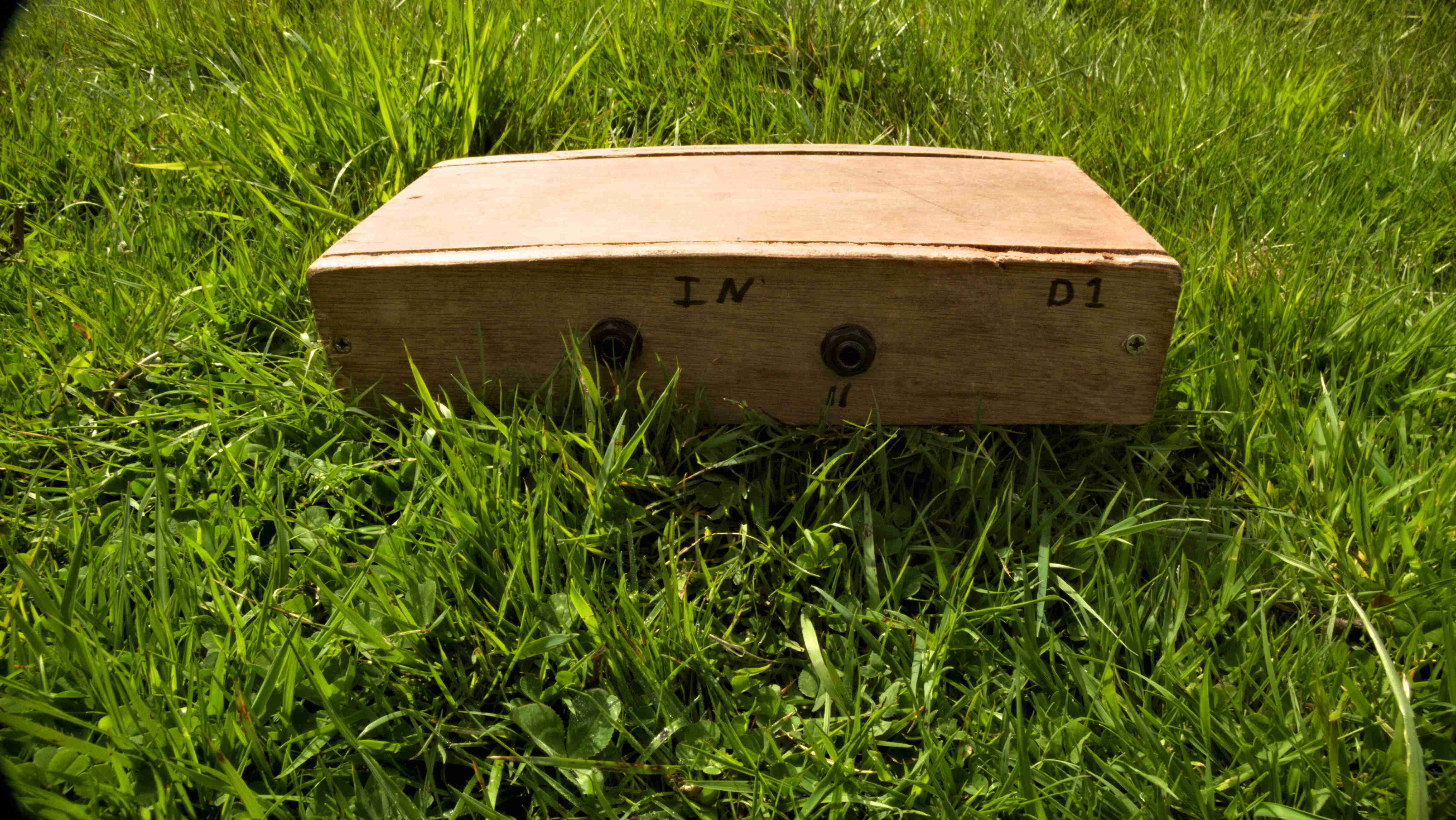

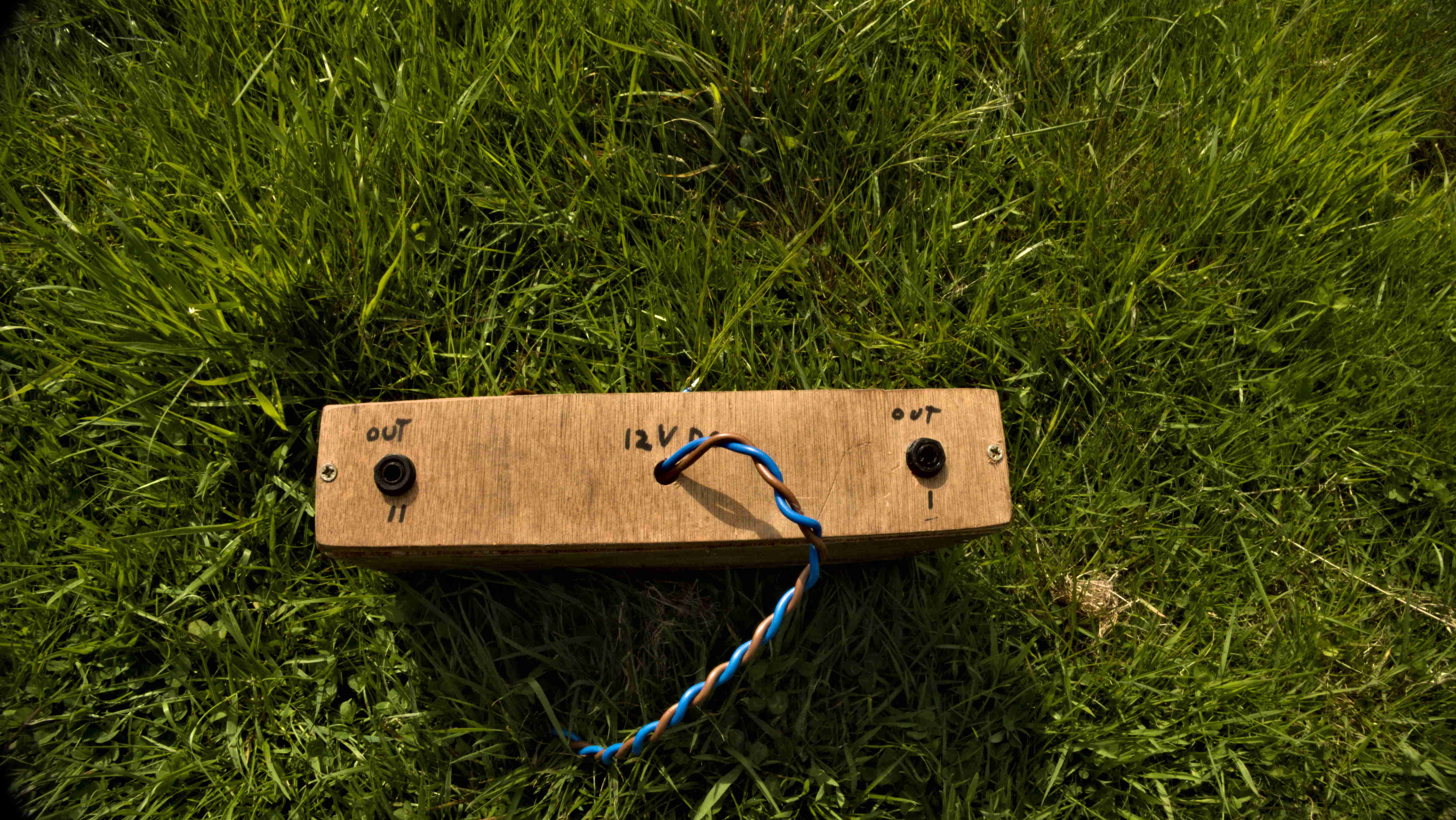

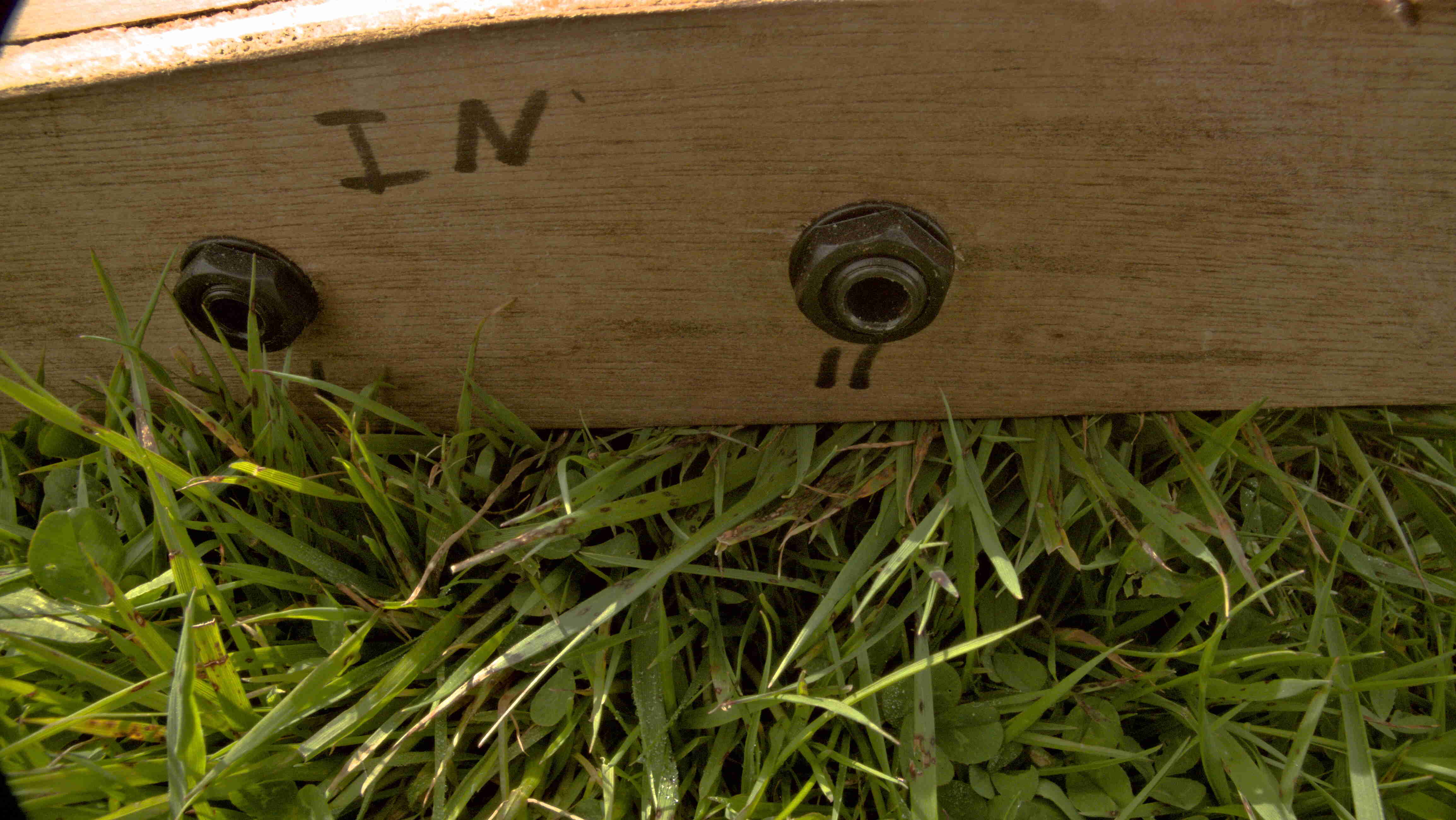

power amplifier module. It comes with 3/4 inch jack inputs and outputs and a crimp
style 12 volt power connection. The module is based around a TA2024 Integrated

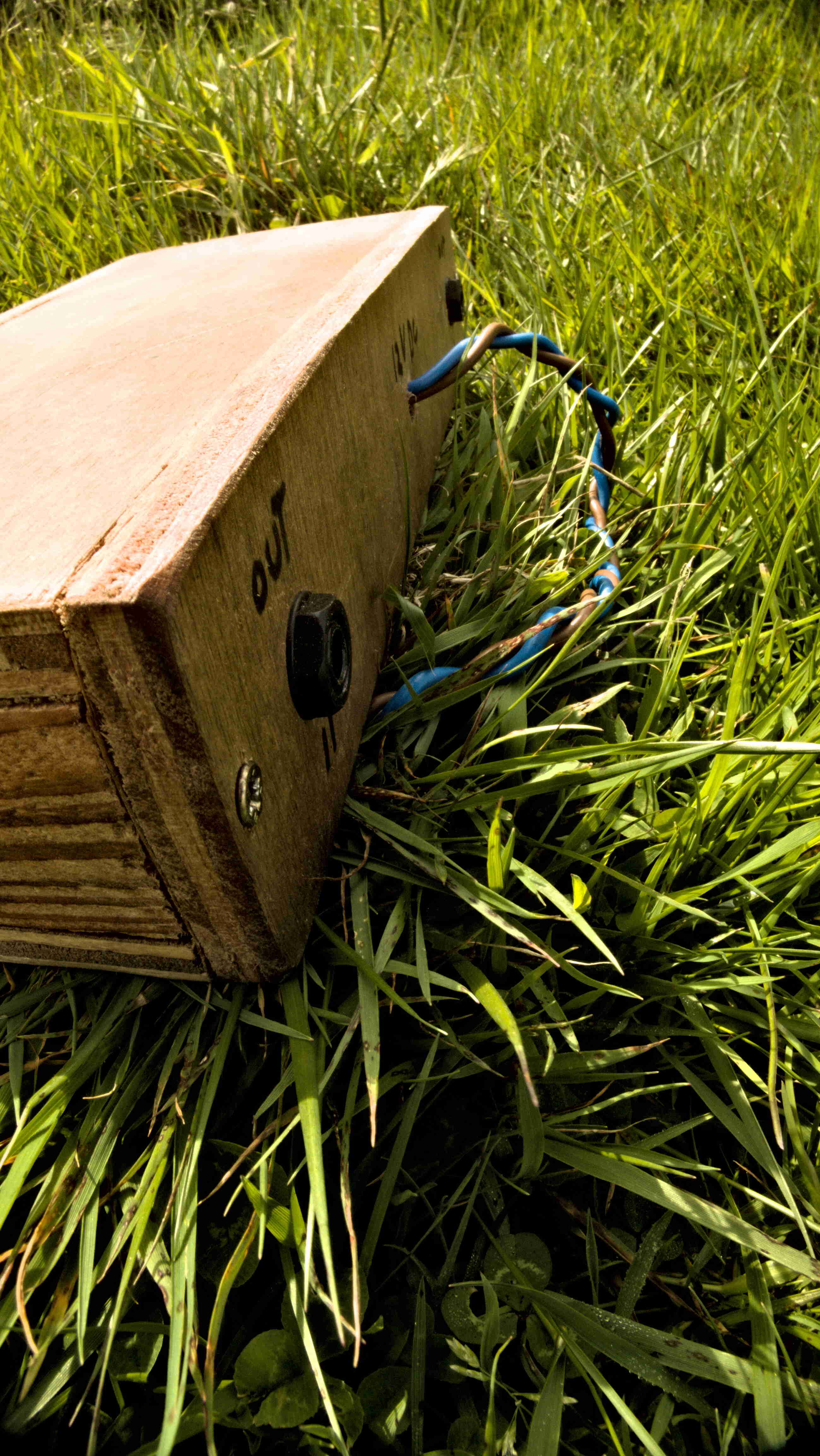

circuit amplifier. The casing is made from reclaimed plywood and the dimensions
and weight of the module have been designed around portability
and ease of installation.


Specifications.

Input Voltage 9 - 16 Volts DC

Total harmonic distortion
0.04% THD+N @ 9W, 4Ω: 0.18% IHF-IM @ 1W, 4Ω: 6W @ 8Ω,
0.1% THD+N :11W @ 4Ω, 0.1% THD+N

High Power 10W @ 8Ω, 10% THD+N: 15W @ 4Ω, 10% THD+N

High Efficiency 88% @ 10W, 8Ω: 81% @ 15W, 4Ω

Dynamic Range = 102 dB

width: 300 mm.

height: 60 mm.

length: 135 mm.

Weight:2 Kg.



The amplifier module sis designed to be used as part of a portable sound reinforcement setup.
Ideally suited to scenarios where music equipment has to be hiked long distances or
where Vehicle access is not possible.


This module can be powered by a lightweight 7 amp hour battery for more than 16 hours continuous.





Price £70 GBP
Email sales@sympatheticsystems.co.uk
To order yours now.
